Wayfinding Russia's tallest skyscraper

Akhmat Tower is a 108 story mixed-use property containing residential, office, and hotel space aimed at anchoring Grozny, Russia as a business and tourism hub.

I served as the lead creative director and project manager for the project. As a matter of necessity due to the INSANELY short deadline, we collectively established a set of best practices building on lessons learned from Jeddah Tower in order to maintain peak efficiency as we developed the project.

User Scenarios

User scenarios are typically a way for our team to understand the nuances of a structure. However, in this instance our analysis uncovered some issues that ultimately led to architectural changes.

User Types Evaluated

Resident: Drop-off
Resident: Parking
Hotel: Drop-off
Hotel: Parking
Hotel: Valet

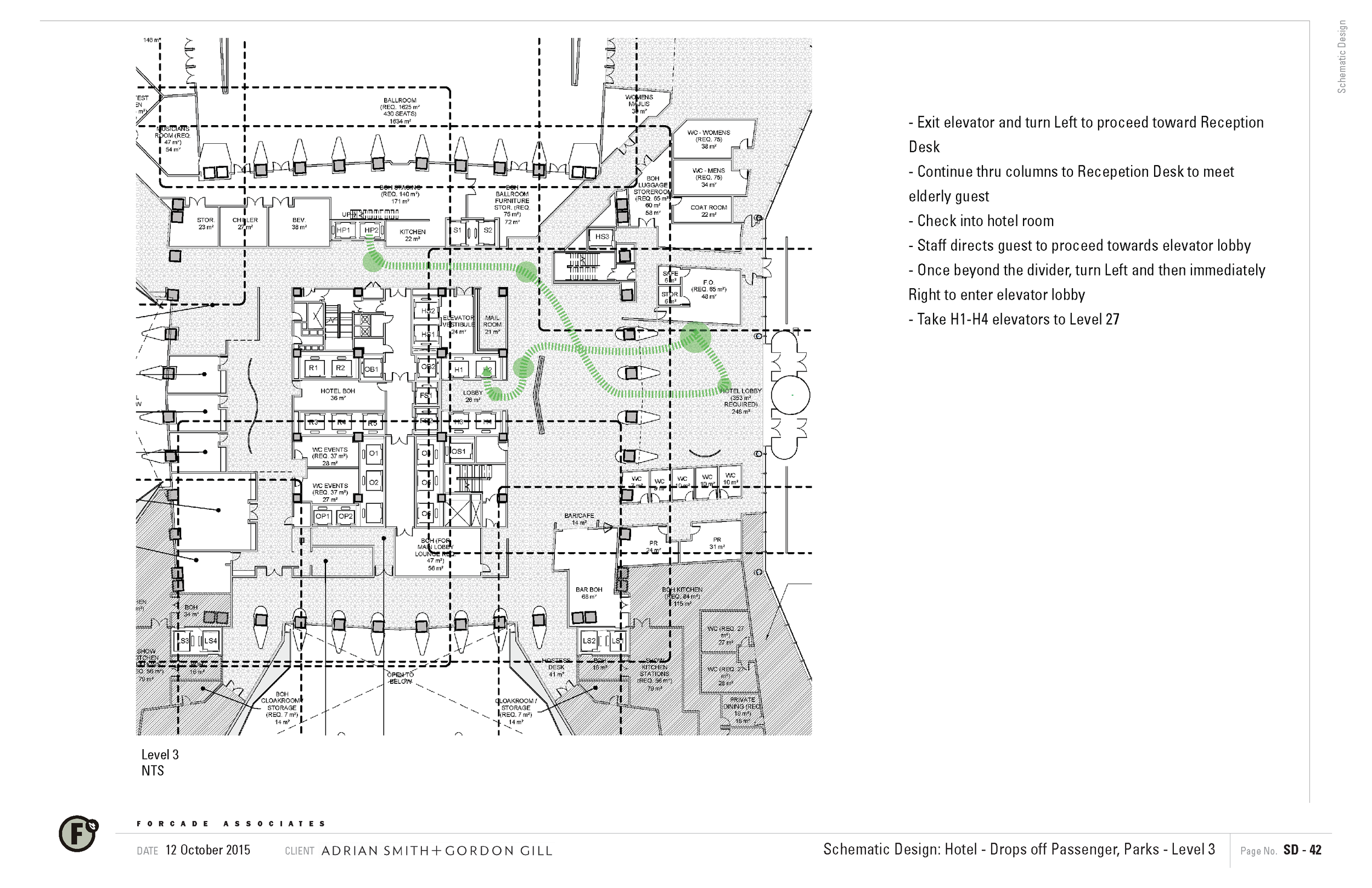

Hotel: Drop-off passengers, then parks
Office: Client drop-off
Office: Employee parking
Office: Condo owner goes to work
Office: Hotel Guest goes to meeting
Observatory: Hotel guest visits deck
Observatory: Tourist visits deck
Observatory: Visits deck after office meeting

2015_1015_AKHMAT_User Scenarios v4_Page_03.png

2015_1015_AKHMAT_User Scenarios v4_Page_04.png

2015_1015_AKHMAT_User Scenarios v4_Page_05.png

2015_1015_AKHMAT_User Scenarios v4_Page_06.png

2015_1015_AKHMAT_User Scenarios v4_Page_07.png

2015_1015_AKHMAT_User Scenarios v4_Page_08.png

2015_1015_AKHMAT_User Scenarios v4_Page_09.png

2015_1015_AKHMAT_User Scenarios v4_Page_33.png

2015_1015_AKHMAT_User Scenarios v4_Page_34.png

2015_1015_AKHMAT_User Scenarios v4_Page_35.png

2015_1015_AKHMAT_User Scenarios v4_Page_36.png

2015_1015_AKHMAT_User Scenarios v4_Page_37.png

2015_1015_AKHMAT_User Scenarios v4_Page_38.png

2015_1015_AKHMAT_User Scenarios v4_Page_39.png

2015_1015_AKHMAT_User Scenarios v4_Page_40.png

2015_1015_AKHMAT_User Scenarios v4_Page_41.png

2015_1015_AKHMAT_User Scenarios v4_Page_42.png

2015_1015_AKHMAT_User Scenarios v4_Page_43.png

2015_1015_AKHMAT_User Scenarios v4_Page_10.png

2015_1015_AKHMAT_User Scenarios v4_Page_11.png

2015_1015_AKHMAT_User Scenarios v4_Page_12.png

2015_1015_AKHMAT_User Scenarios v4_Page_13.png

2015_1015_AKHMAT_User Scenarios v4_Page_14.png

2015_1015_AKHMAT_User Scenarios v4_Page_15.png

2015_1015_AKHMAT_User Scenarios v4_Page_16.png

2015_1015_AKHMAT_User Scenarios v4_Page_17.png

2015_1015_AKHMAT_User Scenarios v4_Page_18.png

2015_1015_AKHMAT_User Scenarios v4_Page_19.png

2015_1015_AKHMAT_User Scenarios v4_Page_20.png

2015_1015_AKHMAT_User Scenarios v4_Page_21.png

2015_1015_AKHMAT_User Scenarios v4_Page_22.png

2015_1015_AKHMAT_User Scenarios v4_Page_23.png

2015_1015_AKHMAT_User Scenarios v4_Page_24.png

2015_1015_AKHMAT_User Scenarios v4_Page_25.png

2015_1015_AKHMAT_User Scenarios v4_Page_26.png

2015_1015_AKHMAT_User Scenarios v4_Page_27.png

2015_1015_AKHMAT_User Scenarios v4_Page_28.png

2015_1015_AKHMAT_User Scenarios v4_Page_29.png

2015_1015_AKHMAT_User Scenarios v4_Page_30.png

2015_1015_AKHMAT_User Scenarios v4_Page_31.png

2015_1015_AKHMAT_User Scenarios v4_Page_32.png

2015_1015_AKHMAT_User Scenarios v4_Page_44.png

2015_1015_AKHMAT_User Scenarios v4_Page_45.png

2015_1015_AKHMAT_User Scenarios v4_Page_46.png

2015_1015_AKHMAT_User Scenarios v4_Page_47.png

2015_1015_AKHMAT_User Scenarios v4_Page_48.png

2015_1015_AKHMAT_User Scenarios v4_Page_49.png

2015_1015_AKHMAT_User Scenarios v4_Page_50.png

2015_1015_AKHMAT_User Scenarios v4_Page_51.png

2015_1015_AKHMAT_User Scenarios v4_Page_52.png

2015_1015_AKHMAT_User Scenarios v4_Page_53.png

2015_1015_AKHMAT_User Scenarios v4_Page_54.png

2015_1015_AKHMAT_User Scenarios v4_Page_55.png

2015_1015_AKHMAT_User Scenarios v4_Page_56.png

2015_1015_AKHMAT_User Scenarios v4_Page_57.png

2015_1015_AKHMAT_User Scenarios v4_Page_58.png

2015_1015_AKHMAT_User Scenarios v4_Page_59.png

2015_1015_AKHMAT_User Scenarios v4_Page_60.png

2015_1015_AKHMAT_User Scenarios v4_Page_61.png

2015_1015_AKHMAT_User Scenarios v4_Page_62.png

2015_1015_AKHMAT_User Scenarios v4_Page_63.png

2015_1015_AKHMAT_User Scenarios v4_Page_64.png

2015_1015_AKHMAT_User Scenarios v4_Page_65.png

2015_1015_AKHMAT_User Scenarios v4_Page_66.png

2015_1015_AKHMAT_User Scenarios v4_Page_67.png

2015_1015_AKHMAT_User Scenarios v4_Page_68.png

2015_1015_AKHMAT_User Scenarios v4_Page_69.png

2015_1015_AKHMAT_User Scenarios v4_Page_70.png

2015_1015_AKHMAT_User Scenarios v4_Page_71.png

2015_1015_AKHMAT_User Scenarios v4_Page_72.png

2015_1015_AKHMAT_User Scenarios v4_Page_73.png

2015_1015_AKHMAT_User Scenarios v4_Page_74.png

2015_1015_AKHMAT_User Scenarios v4_Page_75.png

2015_1015_AKHMAT_User Scenarios v4_Page_76.png

2015_1015_AKHMAT_User Scenarios v4_Page_77.png

2015_1015_AKHMAT_User Scenarios v4_Page_78.png

2015_1015_AKHMAT_User Scenarios v4_Page_79.png

2015_1015_AKHMAT_User Scenarios v4_Page_80.png

2015_1015_AKHMAT_User Scenarios v4_Page_81.png

2015_1015_AKHMAT_User Scenarios v4_Page_82.png

2015_1015_AKHMAT_User Scenarios v4_Page_83.png

2015_1015_AKHMAT_User Scenarios v4_Page_84.png

2015_1015_AKHMAT_User Scenarios v4_Page_85.png

2015_1015_AKHMAT_User Scenarios v4_Page_86.png

Wayfinding Strategy

Once our user scenarios identify key decision points requiring signage, we start to develop a wayfinding strategy and identify key sign locations of site navigation.

We used low fidelity paper prototypes to better view the site in the three-dimensional space versus just staring at a site plan. In this manner, we're better able to spec the right signs and review approaches to the site from a variety of entrance points.

Signage & Graphics

Our team developed the exterior signage package by taking cues from the architectural form as well as cultural influences. Sharp lines and segmented glass defined the primary exterior signs derived from the architecture. A separate signage package for the observatory drew inspiration from Islamic/geometric patterns and layering to create a visual language entirely unique for visiting tourists.

Large environmental graphics where developed based on the geometry of the site plans, which was manipulated to direct users into passageways and ultimately to specific elevators.
